mickel8
Membrane Core Team
Beamchmark - tool for measuring BEAM performance
Hi,
Beamchmark is a very simple tool for measuring BEAM performance.
Sometimes when you want to check how busy is your EVM it might be better to check its schedulers utilization instead of CPU usage provided e.g. by htop. This is beacause of schedulers busy waiting.
You can specify custom scenario by implementing Beamchmark.Scenario behaviour.
Next, Beamchmark will measure BEAM performance (at the moment scheduler utilization, context switches and reductions) while running this scenario.
When running for the second time it will also compare current results with the previous ones.
We use it for measuring video conference system performance.
You can check it out under GitHub - membraneframework/beamchmark: Elixir tool for benchmarking EVM performance
Example output
================
SYSTEM INFO
================
System version: Erlang/OTP 24 [erts-12.0] [source] [64-bit] [smp:64:64] [ds:64:64:10] [async-threads:1] [jit]
System arch: x86_64-pc-linux-gnu
NIF version: 2.16
================
BASE
================
Normal schedulers
--------------------
16 0.12332162915531408 12.3%
18 0.11722485535815715 11.7%
54 5.032564790559668e-6 0.0%
5 0.12924638166306135 12.9%
19 0.11832582564937888 11.8%
42 0.10761756740560681 10.8%
27 0.09217876193705123 9.2%
49 0.044102097083953525 4.4%
62 2.1700132428583926e-5 0.0%
56 5.13526535806117e-6 0.0%
35 0.11343372764090544 11.3%
10 0.12592799368513882 12.6%
24 0.09445682751448983 9.4%
50 0.007215266765866991 0.7%
53 5.831814229859165e-6 0.0%
36 0.11795585709316166 11.8%
4 0.13320479706823643 13.3%
21 0.11916323114808863 11.9%
52 6.048572589380919e-6 0.0%
22 0.11839551487569377 11.8%
17 0.1146888235904518 11.5%
55 7.401888888771653e-6 0.0%
58 5.457144203623767e-6 0.0%
3 0.10351742825669948 10.4%
8 0.12687996095950224 12.7%
1 0.139757648063115 14.0%
7 0.11675491327932552 11.7%
2 0.13038384886731064 13.0%
60 5.4813951497368795e-6 0.0%
14 0.12273367212149136 12.3%
15 0.12623944357439068 12.6%
20 0.11647546069579101 11.6%
41 0.10742868119026028 10.7%
40 0.09643592886662816 9.6%
59 5.221452399409748e-6 0.0%
13 0.12229514501569524 12.2%
38 0.11958099183445867 12.0%
51 0.003301180300997468 0.3%
6 0.13223338383518576 13.2%
64 6.414434547506458e-6 0.0%
28 0.11555683092723558 11.6%
25 0.1148205815011423 11.5%
34 0.10963802380435157 11.0%
32 0.11351149079901764 11.4%
9 0.1302195658050994 13.0%
37 0.1030777426340972 10.3%
11 0.12248292296180183 12.2%
31 0.09712795112394824 9.7%
46 0.08673162179260727 8.7%
63 1.4286599569948833e-5 0.0%
26 0.11565643722504804 11.6%
57 5.658058349094716e-6 0.0%
48 0.049119085089049976 4.9%
45 0.09384519414615936 9.4%
39 0.11796164946445747 11.8%
43 0.09566901886800855 9.6%
30 0.11353305704473911 11.4%
61 5.8769432955532854e-5 0.0%
47 0.06787424714208626 6.8%
29 0.11903822824147328 11.9%
23 0.11543367635169725 11.5%
44 0.10037409897053118 10.0%
12 0.12242256044427376 12.2%
33 0.11358235119101953 11.4%
Total: 0.0852860252934174 8.5%
CPU schedulers
--------------------
107 0.0 0.0%
115 0.0 0.0%
79 0.0 0.0%
118 0.0 0.0%
114 0.0 0.0%
101 0.0 0.0%
65 0.0 0.0%
106 0.0 0.0%
93 0.0 0.0%
67 0.0 0.0%
92 0.0 0.0%
94 0.0 0.0%
84 0.0 0.0%
125 0.0 0.0%
121 0.0 0.0%
127 0.0 0.0%
105 0.0 0.0%
102 0.0 0.0%
70 0.0 0.0%
66 0.0 0.0%
82 0.0 0.0%
119 0.0 0.0%
128 0.011159736402495195 1.1%
96 0.0 0.0%
87 0.0 0.0%
111 0.0 0.0%
90 0.0 0.0%
75 0.0 0.0%
104 0.0 0.0%
97 0.0 0.0%
112 0.0 0.0%
99 0.0 0.0%
74 0.0 0.0%
83 0.0 0.0%
122 0.0 0.0%
103 0.0 0.0%
108 0.0 0.0%
78 0.0 0.0%
95 0.0 0.0%
77 0.0 0.0%
123 0.0 0.0%
126 0.0 0.0%
80 0.0 0.0%
116 0.0 0.0%
86 0.0 0.0%
68 0.0 0.0%
110 0.0 0.0%
72 0.0 0.0%
109 0.0 0.0%
120 0.0 0.0%
91 0.0 0.0%
85 0.0 0.0%
76 0.0 0.0%
81 0.0 0.0%
98 0.0 0.0%
71 0.0 0.0%
100 0.0 0.0%
88 0.0 0.0%
69 0.0 0.0%
113 0.0 0.0%
89 0.0 0.0%
124 0.0 0.0%
73 0.0 0.0%
117 0.0 0.0%
Total: 1.7437088128898742e-4 0.0%
IO schedulers
--------------------
Total: 0 0%
Weighted
--------------------
0.08546067401497172 8.5%
Reductions
--------------------
4366438896
Context Switches
--------------------
8225771
================
NEW
================
Normal schedulers
--------------------
16 0.12766651841366977 12.8% 0.004344889258355689 4.0650406504064875%
18 0.12623933654184297 12.6% 0.009014481183685821 7.692307692307693%
54 0.026166548572311002 2.6% 0.026161516007520442 nan
5 0.14226038117153825 14.2% 0.013013999508476898 10.077519379844958%
19 0.12847107569758381 12.8% 0.010145250048204935 8.474576271186436%
42 0.11021637228759568 11.0% 0.002598804881988867 1.8518518518518334%
27 0.1232729579903922 12.3% 0.031094196053340975 33.69565217391306%
49 0.07450088988044047 7.5% 0.030398792796486947 70.45454545454544%
62 2.9401778752875332e-5 0.0% 7.701646324291406e-6 0%
56 0.02162994663543132 2.2% 0.021624811370073257 nan
35 0.12426093977160607 12.4% 0.010827212130700634 9.73451327433628%
10 0.1361110112567493 13.6% 0.01018301757161047 7.936507936507937%
24 0.11719365680914552 11.7% 0.02273682929465569 24.468085106382958%
50 0.050825721877617365 5.1% 0.04361045511175037 628.5714285714286%
53 0.03408978501003332 3.4% 0.03408395319580346 nan
36 0.12342016919919341 12.3% 0.005464312106031752 4.237288135593204%
4 0.14366101310290186 14.4% 0.010456216034665428 8.27067669172932%
21 0.12709412012556964 12.7% 0.00793088897748101 6.722689075630257%
52 0.04115423686939777 4.1% 0.04114818829680839 nan
22 0.11543268867946113 11.5% -0.002962826196232643 -2.5423728813559308%
17 0.128400422848902 12.8% 0.013711599258450197 11.304347826086953%
55 0.02559172514938536 2.6% 0.02558432326049659 nan
58 4.938630557421869e-6 0.0% -5.185136462018979e-7 0%
3 0.14014341178404496 14.0% 0.03662598352734549 34.61538461538461%
8 0.13402840171689867 13.4% 0.007148440757396429 5.511811023622059%
1 0.14353265852664854 14.4% 0.00377501046353354 2.8571428571428754%
7 0.1374798372208734 13.7% 0.020724923941547874 17.094017094017104%
2 0.14229811712057377 14.2% 0.011914268253263138 9.230769230769226%
60 3.2152322592158207e-5 0.0% 2.6670927442421327e-5 0%
14 0.12821854813041064 12.8% 0.005484876008919282 4.0650406504064875%
15 0.12705768349676053 12.7% 8.182399223698456e-4 0.7936507936507837%
20 0.12662701574540447 12.7% 0.010151555049613459 9.482758620689651%
41 0.11837240258880774 11.8% 0.010943721398547462 10.28037383177572%
40 0.11923249339699626 11.9% 0.022796564530368102 23.958333333333343%
59 5.114110179140922e-6 0.0% -1.0734222026882545e-7 0%
13 0.130044321423 13.0% 0.007749176407304742 6.557377049180332%
38 0.12064154327712961 12.1% 0.0010605514426709484 0.8333333333333286%
51 0.04859227973756821 4.9% 0.04529109943657074 1533.3333333333335%
6 0.13733284994722608 13.7% 0.005099466112040318 3.787878787878782%
64 2.6515179658314175e-5 0.0% 2.0100745110807717e-5 0%
28 0.11744776457160935 11.7% 0.001890933644373774 0.8620689655172384%
25 0.12569764159572772 12.6% 0.010877060094585417 9.565217391304344%
34 0.1199291686759884 12.0% 0.010291144871636834 9.09090909090908%
32 0.1225474786594902 12.3% 0.009035987860472564 7.89473684210526%
9 0.1384851750256562 13.8% 0.008265609220556774 6.15384615384616%
37 0.12741701264261787 12.7% 0.024339270008520666 23.300970873786397%
11 0.13128593244945397 13.1% 0.008803009487652141 7.377049180327873%
31 0.12057088337993159 12.1% 0.023442932255983345 24.74226804123711%
46 0.10500569293164506 10.5% 0.018274071139037798 20.689655172413808%
63 1.167241607526052e-4 0.0% 1.0243756118265637e-4 0%
26 0.12178516843570256 12.2% 0.00612873121065452 5.172413793103445%
57 0.016000276292433044 1.6% 0.01599461823408395 nan
48 0.09175904589482825 9.2% 0.042639960805778275 87.7551020408163%
45 0.11498491982685588 11.5% 0.021139725680696525 22.34042553191489%
39 0.1077791634478798 10.8% -0.010182486016577674 -8.474576271186436%
43 0.09783116312881152 9.8% 0.0021621442608029673 2.083333333333343%
30 0.12384280759898027 12.4% 0.01030975055424116 8.771929824561411%
61 1.3514800354046263e-5 0.0% -4.525463260148659e-5 0%
47 0.1073233698085129 10.7% 0.03944912266642664 57.35294117647058%
29 0.12471059912939608 12.5% 0.005672370887922801 5.0420168067227%
23 0.12183976809307168 12.2% 0.006406091741374423 6.086956521739111%
44 0.11603537117086218 11.6% 0.015661272200331006 15.999999999999986%
12 0.13437942534565117 13.4% 0.011956864901377415 9.836065573770497%
33 0.11744473188373031 11.7% 0.0038623806927107762 2.6315789473684106%
Total: 0.09852487504648118 9.9% 0.013238849753063775 16.47058823529413%
CPU schedulers
--------------------
107 0.0 0.0% 0.0 0%
115 0.0 0.0% 0.0 0%
79 0.0 0.0% 0.0 0%
118 0.0 0.0% 0.0 0%
114 0.0 0.0% 0.0 0%
101 0.0 0.0% 0.0 0%
65 0.0 0.0% 0.0 0%
106 0.0 0.0% 0.0 0%
93 0.0 0.0% 0.0 0%
67 0.0 0.0% 0.0 0%
92 0.0 0.0% 0.0 0%
94 0.0 0.0% 0.0 0%
84 0.0 0.0% 0.0 0%
125 0.0 0.0% 0.0 0%
121 0.0 0.0% 0.0 0%
127 0.009551413063225432 1.0% 0.009551413063225432 nan
105 0.0 0.0% 0.0 0%
102 0.0 0.0% 0.0 0%
70 0.0 0.0% 0.0 0%
66 0.0 0.0% 0.0 0%
82 0.0 0.0% 0.0 0%
119 0.0 0.0% 0.0 0%
128 0.002978445402194614 0.3% -0.008181291000300581 -72.72727272727273%
96 0.0 0.0% 0.0 0%
87 0.0 0.0% 0.0 0%
111 0.0 0.0% 0.0 0%
90 0.0 0.0% 0.0 0%
75 0.0 0.0% 0.0 0%
104 0.0 0.0% 0.0 0%
97 0.0 0.0% 0.0 0%
112 0.0 0.0% 0.0 0%
99 0.0 0.0% 0.0 0%
74 0.0 0.0% 0.0 0%
83 0.0 0.0% 0.0 0%
122 0.0 0.0% 0.0 0%
103 0.0 0.0% 0.0 0%
108 0.0 0.0% 0.0 0%
78 0.0 0.0% 0.0 0%
95 0.0 0.0% 0.0 0%
77 0.0 0.0% 0.0 0%
123 0.0 0.0% 0.0 0%
126 0.0 0.0% 0.0 0%
80 0.0 0.0% 0.0 0%
116 0.0 0.0% 0.0 0%
86 0.0 0.0% 0.0 0%
68 0.0 0.0% 0.0 0%
110 0.0 0.0% 0.0 0%
72 0.0 0.0% 0.0 0%
109 0.0 0.0% 0.0 0%
120 0.0 0.0% 0.0 0%
91 0.0 0.0% 0.0 0%
85 0.0 0.0% 0.0 0%
76 0.0 0.0% 0.0 0%
81 0.0 0.0% 0.0 0%
98 0.0 0.0% 0.0 0%
71 0.0 0.0% 0.0 0%
100 0.0 0.0% 0.0 0%
88 0.0 0.0% 0.0 0%
69 0.0 0.0% 0.0 0%
113 0.0 0.0% 0.0 0%
89 0.0 0.0% 0.0 0%
124 0.0 0.0% 0.0 0%
73 0.0 0.0% 0.0 0%
117 0.0 0.0% 0.0 0%
Total: 1.9577903852218822e-4 0.0% 2.1408157233200793e-5 0%
IO schedulers
--------------------
Total: 0 0% 0 0%
Weighted
--------------------
0.09872065828564532 9.9% 0.013259984270673597 16.47058823529413%
Reductions
--------------------
4959999777 593560881 13.593706339134812%
Context Switches
--------------------
12898957 4673186 56.81152563084967%
Results successfully saved to "/tmp/videoroom_benchmark/new" directory
Most Liked
balins
Hi folks,
I’m happy to announce that version 1.0.0 of Beamchmark has been released!

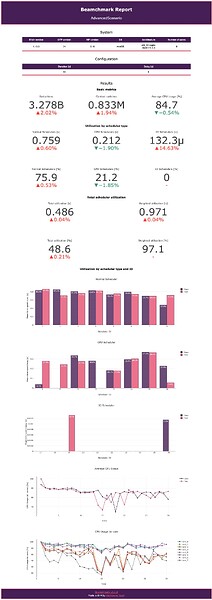

In the latest release, we made it possible to customize Beamchmark’s output with so-called formatters, which are modules implementing Beamchmark.Formatter behaviour. Apart from the already used console output, Beamchmark now ships with an HTML formatter, which you can use to display graphical reports.
9
mickel8
Membrane Core Team
shuntrho
shuntrho
cmo
10 points for a wonderful package name
5
Popular in Libraries
I feel kind of stuck with the absence of a proper xml library for Elixir. Currently I use SweetXML which was ok for me more or less to pa...
New
Just looking for a little feedback on a tiny helper library I built -
Sometimes I find the need to convert maps with atom keys to maps...
New
Elixir plugin for JetBrain’s IntelliJ Platform (including Rubymine)
This is a plugin that adds support for Elixir to JetBrains IntelliJ...
New
Leverage Open Api 3.0 (Swagger) to document, test, validate and explore your Plug and Phoenix APIs.
Generate and serve a JSON Open API ...
New
If you would like to migrate away from node/npm/webpack while still using sass, the dart_sass package provides a installer and runner for...
New
Hello everybody.
I have just released Jason - a new JSON library.
You might be wondering, why do we need a new library? The primary foc...
New
I’ve cleaned up and open sourced three financial libraries I was using for my company. They are bindings for the APIs of these three comp...
New
PhoenixWS - Websockets over Phoenix Channels
Source code on Github here: https://github.com/tmbb/phoenix_ws
Phoenix channels are a great...
New
Hello everyone!
I want to share with you something that I’m really proud of: https://stillstatic.io/
Still is a static site builder for...
New
Bandit is an HTTP server for Plug and WebSock apps.
Bandit is written entirely in Elixir and is built atop Thousand Island. It can serve...
New
Other popular topics
How to handle excepions in elixir? Suppose i have A, B, C ,D, E modules. and each module has get() function. A.get() method will call th...
New
Okay, I'm having a heck of a time trying to figure out how to best handle the validation of belongs_to associations in Ecto. I'm sure I'...
New
Credo is smart enough to check for (something like) this:
assert length(the_list) == 0
with this response:
Checking if an enum is empt...
New
In the Dialyzer docs ( http://erlang.org/doc/man/dialyzer.html#requesting-or-suppressing-warnings-in-source-files ), there is a way to tu...
New
As the title describes, I’m trying to run Enum.map() over a list of key/value pairs, where the value is a map. My data looks like this:
...
New
Hi,
I'm quite new in Elixir and I'm trying to format a string to a PEM format. I have the certificate value like MIIDBTCCAe2...... and ...
New
I have seen a lot of code which picks the first element from a list using Enum.at(0) instead of List.first. Is there a reason why people ...
New
I am using Ecto timestamps with postgres, I can see the timestamps() use the :naive_dateime but for my use case I wanted to store the ti...
New
Hi,
I am new to Elixir. I am trying to use the DateTime component to insert a date into MySQL however the there seems to be no way to fo...
New
About me? ( if you have nothing better to do than reading about some random guy in the internet :stuck_out_tongue: )
Hello all, this is ...
New
Latest on Elixir Forum
Sponsor Spotlight
Build Elixir applications with speed and confidence.
Categories:
Sub Categories:
Forums
Our Sponsors
Build Elixir applications with speed and confidence.
Supporting innovation across the BEAM ecosystem.
We build reliable cloud platforms for business-critical systems.
Catch errors, track performance, monitor hosts and more.
Practical resources that improve the lives of professional developers.
Enabling companies to succeed by building software people love.
The deployment platform built for Elixir: PaaS ease, VPS control.
Courses that'll move you from confusion to "Aha, now I get it!"
